Kit Vertex drawer kitchen or bathroom panels with 500mm depth 178mm height 600mm white steel module Emuca

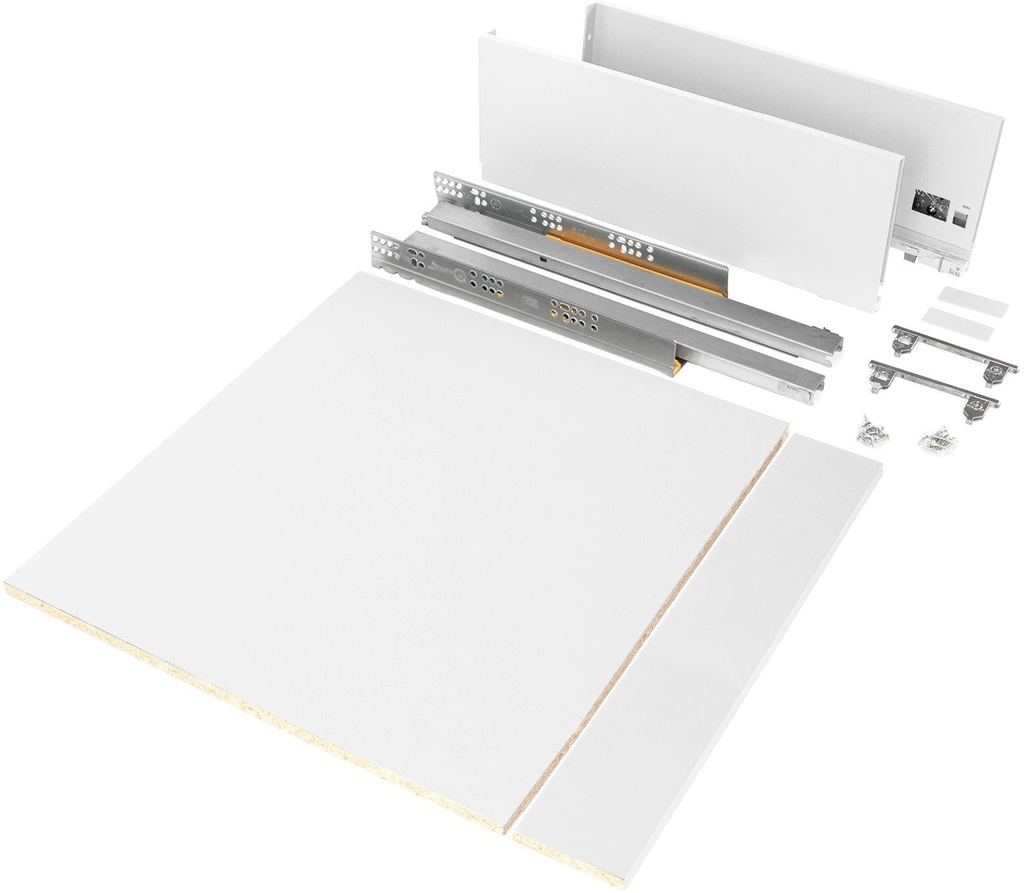

Drawer Kit for kitchen and bathroom with all the elements needed for assembly. It is the optimal solution for the furniture in your kitchen, bathroom or closet with elegant design in white. Each kit contains all the necessary elements for mounting an outer drawer height 178 mm and depth 500 mm to 600mm module. It includes two side ribs, a set of guides with smooth closing a set of end caps, rear and bottom boards and the fixings for the front of the drawer. Just the front panel will take the necessary dimensions of the drawer.

The metal side ribs are made of steel with white painted finish, can regulate the front of the drawer ± 2mm ± 1mm vertically and horizontally. The guides are fully extractable soft close and allow a maximum load of 40 Kg for the drawer.

Boards included for background and rear are agglomerated particle in white and a rough surface to provide greater surface resistance. The boards are thick and 16 mm are cut as standard modules 600 mm. However, they can be cut to fit the width necessary module.

Drawer features:

• Kit hardware needed for mounting a drawer height 178 mm and depth 500 mm, except for the front of the drawer, in modules width 600 mm and thickness of 16 mm side.
• Total extraction guides synchronized with cushioned closing and load capacity of 40 kg.
• Dimensions of the panels: 399 x 490 mm bottom and rear 376 x 148 mm. Pos ibili ty of cutting the boards to adjust the width of the drawer to the desired extent.
• Adjusting the position of the drawer front: 1 ± 2 mm vertically and ± horizontally.
• Made in white painted steel panels and agglomerates with the same color melamine.
