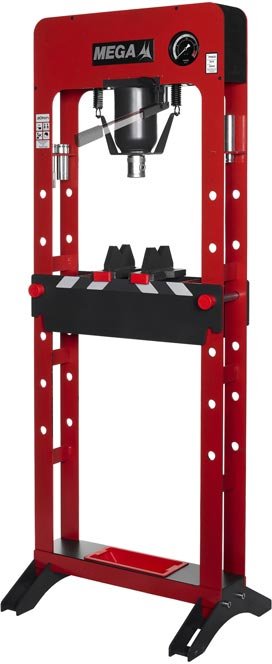

Monoblock hydraulic shop press 30T Mega PRB20
Shop press Mega 30 tons of nominal force, made of high strength steel with hand pump monoblock with a compact and functional design which integrates all the hydraulic elements within the chassis, protecting and saving space in the workshop and in the transportation. Feet are supplied with disposable transport and ready to work.
Main Features Model PRB:
- Adjustable work table at different heights.

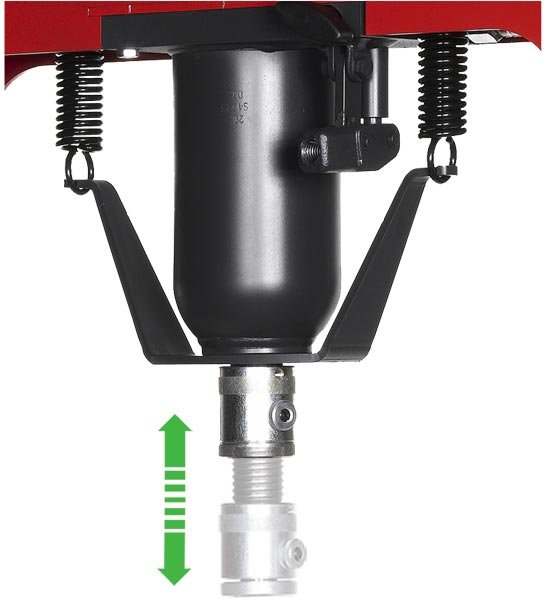

- Extensible spindle for faster approach and / or fine adjustment.
- 2 supports include "V" with a guide clamp and removal opening. Proprietary.
- slidable along the cylinder head in these models.
- Manometer integrated into the chassis damping to prolong its life. Positioning the gauge at eye level for easy reading.
- Presses prepared for fixing to the ground or wheel assembly.
- removable tray.
- Piston automatic return.
Security features models PRB:
- Overload safety valve
- Hydraulic stroke limitation
PRB sheet models:
| Capacity (t) | TO | B | C | D | AND | G1 min. | G2 Max. | R1 Tour | R2 stroke spindle | R Total length | Weight (kg) | Reference |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30 | 670 | 530 | 1850 | 132 | 488 | 53 | 740 | 150 | 75 | 225 | 104 | PRB30 |
| Brand | Mega |
